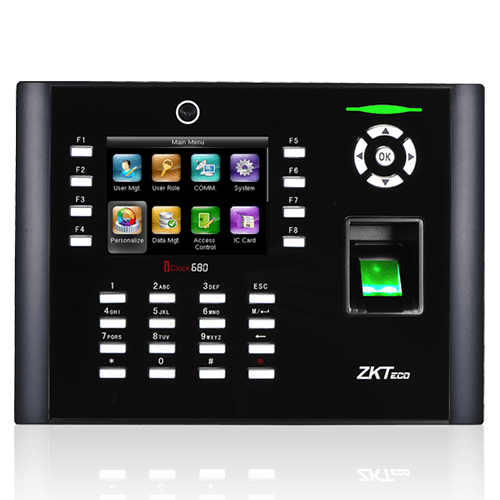

Zkteco iClock 680 Fingerprint Time Attendance & Access Control Terminal descriptions

Zkteco iClock 680  Fingerprint Time Attendance & Access Control Terminal is a biometric fingerprint reader for time & attendance and access control applications. It adopts a brand new firmware and provides an unprecedented user experience with stunning GUI, rock-solid stability, fast matching speed, and expandability.

iClock 680 – Fingerprint Time Attendance users can easily manage data by networking iClock680 via RS232/485, TCP/IP, and USB client. Most importantly, all the functions can still operate in a networking state.

iClock680 is compatible with various types of USB flash disks, ADMS, and former SDK. It also supports data backup and retrieves to avoid the risk of accidental deletion.

iClock 680 – Fingerprint Time Attendance adopts the new user-friendly firmware New features like stunning GUI, more stability, faster matching speed and better expandability. Users can easily manage data by networking iClock680 via RS232/485, TCP/IP. Most importantly, all the functions can still operate in a networking state.

Zkteco iClock 680  Fingerprint Time Attendance specs

• Fingerprint Capacity: Up to 10,000 fingerprints
• Card Capacity: Up to 10,000 cards (optional)
• Transaction Capacity: Up to 200,000 logs
• Display: 3.5-inch TFT color screen
• Communication: TCP/IP, RS232/485, USB Host, Wi-Fi (optional)
• Fingerprint Sensor: Optical sensor
• Identification Modes: Fingerprint, card, password
• Verification Speed: ≤1 second
• Access Control Function: Supports time attendance, access control, and doorbell function
• Wiegand Interfaces: Input and output
• Power Supply: 12V DC, 3A
• Dimensions (W x H x D): 195 x 145 x 38.5 mm (7.68 x 5.71 x 1.52 inches)
• Weight: 1 kg (2.2 lbs)
