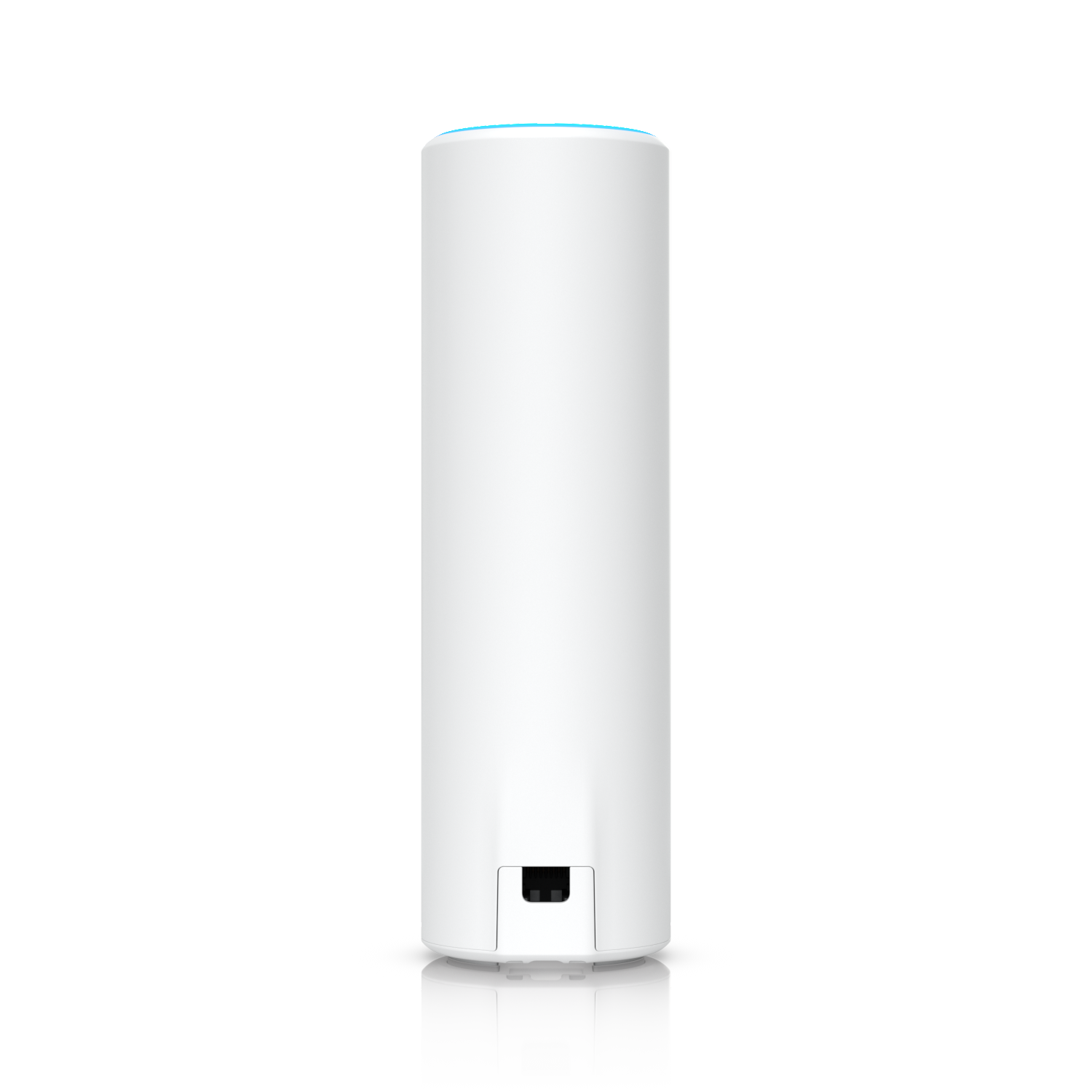

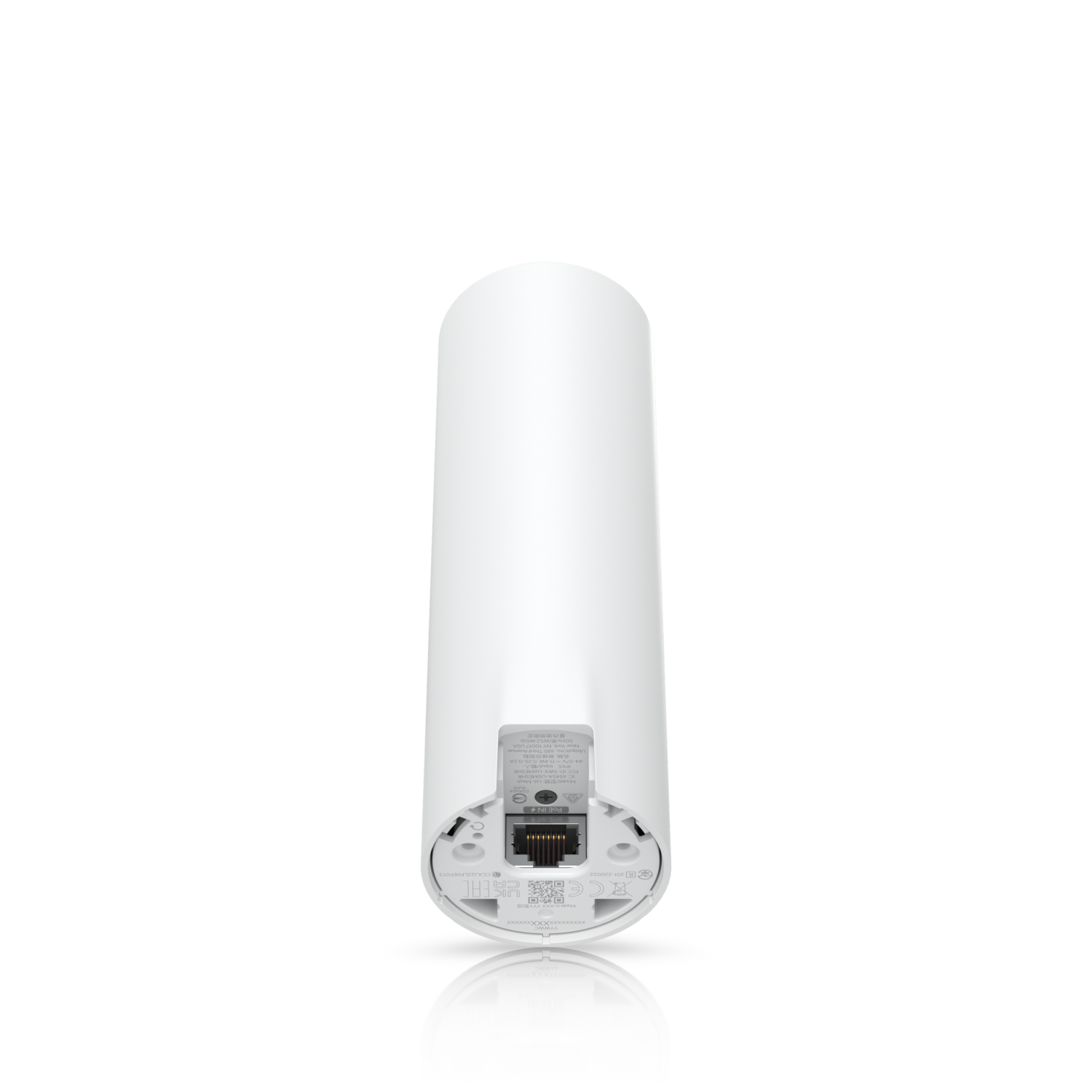

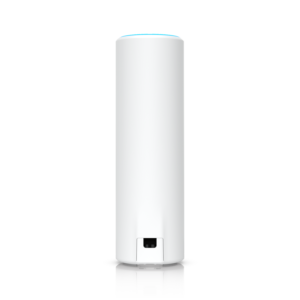

Ubiquiti UniFi AP WiFi 6 Mesh Access Point (U6-MESH)
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that enables best-in-class signal meshing to improve residential and enterprise network wireless coverage. With its 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz (2×2 MIMO) bands, the U6 Mesh can achieve an aggregate throughput rate of up to 5.3 Gbps. This access point also supports full 4×4 MIMO with 160 MHz channels, resulting in high-capacity wireless uplinks and quicker data transfer. Because of its IPX5-rated, waterproof casing, the elegant U6 Mesh can be staged anywhere in your home or office, but it’s also tough enough to operate reliably outdoors.
Ubiquiti UniFi AP WiFi 6 Mesh Access Point Key Features
- High-efficiency 4×4 WiFi 6 (802.11ax)
- 5 GHz (4×4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2×2 MIMO) band with a 573.5 throughput rate
- Operates at full 4×4 MIMO with 160 MHz bandwidth
- Powered with 802.3af PoE (PoE adapter included)
Ubiquiti UniFi AP WiFi 6 Mesh Access Point – Technical Specifications
Mechanical
- Dimensions: Ø48.5 x 159.5 mm (Ø1.9 x 6.28″)
- Weight: 400 g (0.88 lb)
- Enclosure material: Plastic, aluminum
- Mount materials: Plastic
- Weatherproofing: IPX5
Hardware
- Management interfaces: Ethernet, Bluetooth
- Networking interface: (1) GbE RJ45 port
- Button: Factory reset
- LED*: White/blue – *Due to chip supply shortages, the U6 AP’s LED has been limited to only white and blue color modes.
- Power method: 802.3af PoE
- Power supply: UniFi PoE switch, 48V, 0.32A PoE adapter (included)
- Supported voltage range: 44 to 57VDC
- Max. power consumption: 11.4W
- Mounting: Wall, desktop, pole mount(included), Ceiling mount (optional)
- Operating temperature: -30 to 60° C (-22 to 140° F)
- Operating humidity: 5 – 95% non-condensing
- Certifications: CE, FCC, IC
Software
- WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Zero wait DFS: Yes* – *Supported with upcoming firmware versions
Supported Data Rates
- 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b 1, 2, 5.5, 11 Mbps
- 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
- 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
