SW-48-PoE 48-port, (32) GbE, PoE+ RJ45 ports, (16) GbE RJ45 ports, (4) 1G SFP ports, 195W
KSh 110,000.00
SW-48-PoE 48-port, (32) GbE, PoE+ RJ45 ports, (16) GbE RJ45 ports, (4) 1G SFP ports, 195W

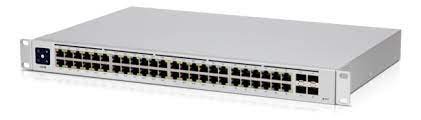

USW-48-PoE 48-port, (32) GbE, PoE+ RJ45 ports, (16) GbE RJ45 ports, (4) 1G SFP ports, 195W is a configurable Gigabit Layer 2 Ubiquiti switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3″ touch LCM to provide status
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:
- (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
- (4) 1G SFP Ports
- 1.3″ touch LCM
- Managed by UniFi Controller
Managed by UniFi Network Controller version: 5.12.32 or higher
Specification:
| MECHANICAL | |
|---|---|
| Dimensions | 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″) |
| Weight | Without mounting brackets: 4.52 kg (9.97 lb) With mounting brackets: 4.61 kg (10.16 lb) |
| Enclosure material | SGCC steel |
| HARDWARE | |
| Networking interface | (48) 10/100/1,000 RJ45 ports (4) 1G SFP Ethernet ports |
| Management interface | Ethernet In-Band |
| Total non-blocking throughput | 52 Gbps |
| Switching capacity | 104 Gbps |
| Forwarding rate | 77.38 Mpps |
| Power method | 100—240V AC, 50/60 Hz, universal input |
| Power supply | AC/DC, Internal, 240W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 45W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| LEDS | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP+ | Link/activity |
| POE | |
| Total available PoE | 195W |
| PoE interfaces Ports 1-32 |
PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Max. PoE wattage per port by PSE PoE+ |
32W |
| Voltage range PoE mode | 44—57V |
| Voltage range PoE+ mode | 50—57V |
