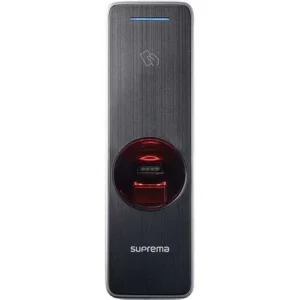

Suprema BEW2-ODPB BioEntry W2 Reader Fingerprint Dual RFID descriptions

World’s Fastest Outdoor Fingerprint Device

BioEntry W2 features a class-leading 1.2GHz Quad-core CPU that enhances user experience by offering the World’s best matching speed, precise control of locking devices, and quick response for users.

IK09 Vandal-proof Structure

The BioEntry W2 comes with robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the BioEntry W2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IP67 ingress protection, BioEntry W2 is a perfect solution for outdoor applications.

IP67, Dust & Water Proof

BioEntry W2 offers superior ingress protection with its IP67-rated rugged structure. The device provides superior protection against invasive moisture, dust, and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment is, BioEntry W2 is the ideal choice for outdoor applications.

Dual Frequency, Multi-Smartcard Reader

Featuring dual-frequency RFID technology, BioEntry W2 supports both LF(125Khz) and HF(13.56MHz) RFID including all RFID standards that HID multiCLASS readers support. On top of fingerprint credentials, BioEntry W2 supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, FeliCa, HID Prox, EM, and NFC.

Live Finger Detection Technology

BioEntry W2 features new Live Finger Detection technology from Suprema. The previous live detection technology analyzes the dynamically changing pattern, liveness feature, and unnaturalness feature of live and new fingers. Along with improvements to the existing algorithm, the new detection technology implements a liveness decision engine using dual light source imaging. Using infrared and white light, the engine blocks fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film, and so on.

Power over Ethernet

BioEntry W2 supports seamless power sourcing over Ethernet cable(CAT5/6) without any degrading network performance and reach. Suprema’s PoE-featured devices comply with the IEEE802.3af standard, to provide users with lower installation costs, simpler cabling, and lower maintenance cost.

Versatile Interfaces

BioEntry W2 comes with not only a TCP/IP interface but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.

Suprema BEW2-ODPB BioEntry W2 Reader Fingerprint Dual RFID specs
