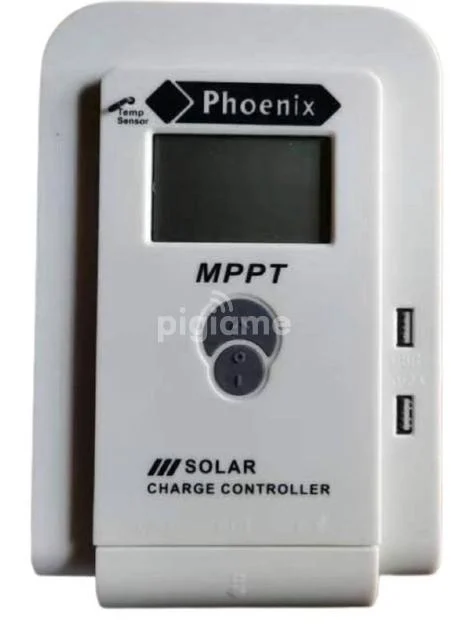

Phoenix MPPT Solar Charge Controller 40AH

Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status.

Phoenix MPPT series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method.

With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, including overcharging and over discharging protection to minimize damages to components of the system caused by incorrect installation or system failure at the utmost,

 Effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.

This modular solar controller can be widely used for different applications, e.g., Communication base stations, household systems, and field monitoring, etc.

Features:

Advanced MPPT technology, with efficiency no less than 99.5%, maximum charge conversion efficiency as high as 98%, Charging power and current limitation function

Monitor and set the parameters via mobile phone APP or PC software, LCD displays system information intuitively, dynamically display all the operating datas and working condition

Multiple load work modes, Compatible with lead-acid and lithium-ion batteries, Battery temperature compensation function, real-time energy statistics function.

The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection, Accurate recognition and tracking of multiple-peaks maximum power point.

With RS-485 communication bus interface and Modbus communication protocol,
