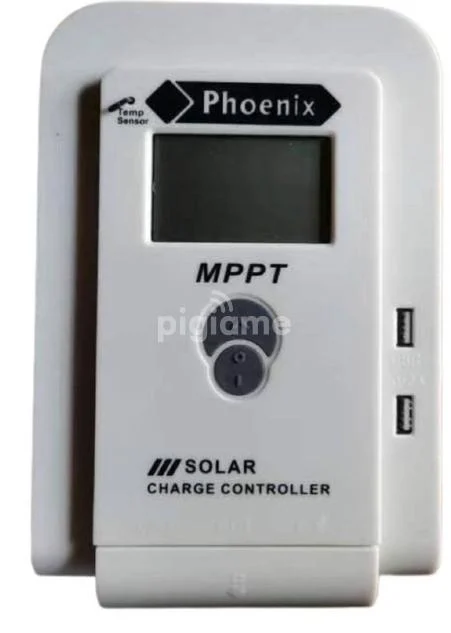

Phoenix 20Amps Digital MPPT solar charge controller

Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status.

Phoenix MPPT series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method.

With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, including overcharging and over discharging protection to minimize damages to components of the system caused by incorrect installation or system failure at the utmost,

Effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.

This modular solar controller can be widely used for different applications, e.g., Communication base stations, household systems, and field monitoring.

Phoenix 20Amps Digital MPPT solar charge controller

• 20Amps Digital MPPT solar charge controller
• 12v/24V Auto
• Microcontroller digital accuracy self test
• Multistage charging technology
• Load disconnection depending on LVD
• Automatic load reconnection
• Temperature Compensation
• Common positive grounding on one terminal
• Integrated data logger(optional)
