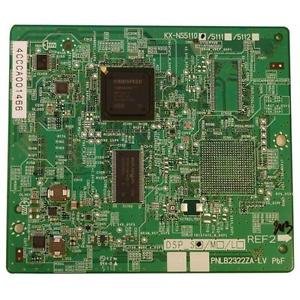

Panasonic KX-NS5110 is a VoIP DSP card with 63 voice channels

Panasonic KX-NS5110 VoIP DSP Card S Type (KX-NS5110).

Panasonic KX-NS5110 VoIP DSP Card for the Panasonic KX-NS700 telephone system.

The card contains activated license for 4 IP proprietary telephone and supports codec G.711, G.722, and G.729A. It also supports the T.38 fax transmission protocol.

The VoIP DSP card increases DISA channels to 30. A maximum of one KX-NS5110 can be used with the Panasonic KX-NS700.

Panasonic KX-NS5110, A DSP card is a digital signal processor card with DSP resources that can be used for VoIP calls, Conferences,

The Unified Messaging feature (Voice-Mail and Auto-Attendant), and the DISA/OGM feature. The DSP cards are compliant with ITU-T G.729A and G.711 codec methods.

Depending on the amount of your DSP resource needs, DSP S, DSP M, or DSP L cards can be installed. The number of resources provided by each type of DSP card is as follows:

• DSP S card: 63
• DSP M card: 127
• DSP L card: 254

One of the DSP cards can be installed on the motherboard.

KX-NS5110 – Panasonic KX-NS5110 VoIP DSP Card S Type
