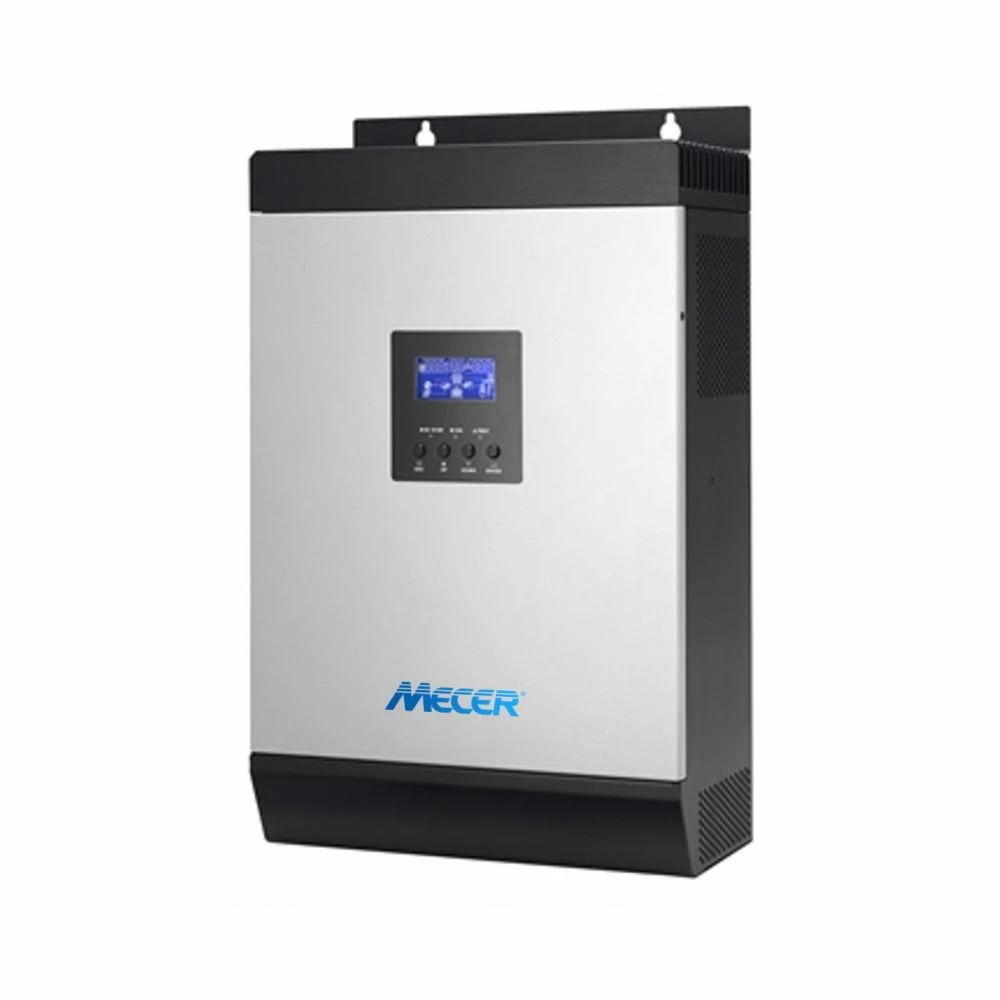

Mecer Off-Grid 5000VA/5000W 48V 4000W MPPT inverter Charger (120A)

The Mecer Off-Grid 5000VA/5000W 48V Inverter Charger is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size.

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Basic System Architecture

The following illustration shows basic application for this inverter/charger. It also includes following devices to
have a complete running system:

•  Generator or Utility.
• PV modules (option)

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioner.

Features:

• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Optional remote panel available

Mecer Off-Grid 5000VA/5000W 48V 4000W MPPT inverter Charger (120A)

 Specifications:

• Rated Power: 5000VA/5000W
• Voltage: 230 VAC
• Surge Power: 10000VA
• Efficiency: 93%
• Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• Battery Voltage: 48 VDC
• Overcharge Protection: 60 VDC
• Maximum Solar Charge Current: 60 A
• Maximum AC Charge Current: 60A
• Maximum PV Array Power: 300 W
• Maximum Charging Current: 120A
• Dimension, D x W x H: 140 x 295 x 540 mm
• Net Weight: 13.5 Kg
