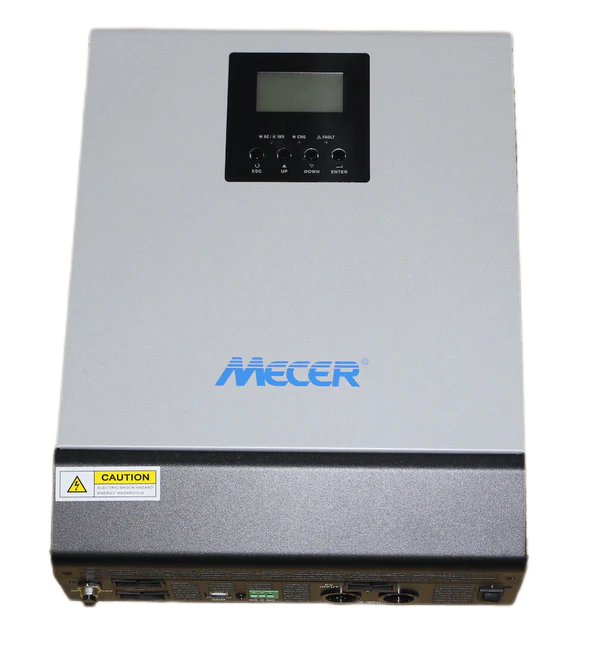

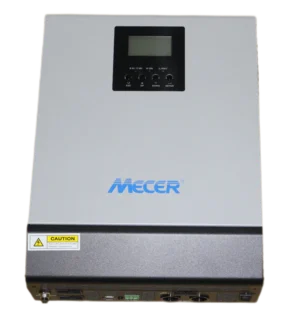

Mecer Hybrid 1000VA / 1000W Inverter Charger descriptions

The Mecer Axpert V 12V Off-Grid Inverter 1KW is the perfect solution for your off-grid power needs. This inverter delivers pure sine wave power with a selectable high-power charging current, and a wide DC input range. You can customize the input voltage range for your home appliances and personal computers, and easily prioritize AC or solar input via the LCD setting. Whether you’re relying on AC mains or a generator, this inverter will keep your power flowing with its auto restart function and overload and short circuit protection. Plus, the battery equalization ensures optimized performance and a long battery lifecycle.

Mecer Hybrid 1000VA / 1000W Inverter Charger specs

Model Axpert VP 1000-12
RATED POWER 1000VA/1000W
INPUT
Voltage 230 VAC

Selectable Voltage Range :

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA
Efficiency (Peak) 90% ~ 93%

Transfer Time :

10 ms (For Personal Computers)

20 ms (For Home Appliances)

Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC
Floating Charge Voltage 13.5 VDC
Overcharge Protection 16 VDC
SOLAR I Charger and AC Charger
Solar Charger type PWM
Maximum PV Array Power 600W
MPPT Range @ Operating Voltage N/A
Maximum PV Array Open Circuit Voltage 55 VDC
Maximum Solar Charge Current 50A
Maximum AC Charge Current 20A
Maximum Charge Current 50A
PHYSICAL
Dimension, D x W x H (mm) 88 x 225 x 320
Net Weight (kgs) 4.4
Communication Interface USB/RS232
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 10°C to 50°C
Storage Temperature -15°C to 60°C
