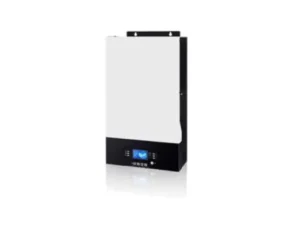

Mecer 5kVA/5kW KING with Parallel incl – SOL-I-AX-5KP descriptions

Mecer Axpert King 5K 5000VA / 5000W hybrid pure sine Wave inverter

• Includes Parallel card
• MPPT solar charge controller 4000W 80amp (Solar panels not included)
• 220V AC Input, 48V DC battery Input – requires deep cycle batteries (Batteries not included), 60amp AC battery charger
• Overload and short Circuit protection
• Configurable AC/solar Input priority
• 12.2kg, Up to 9 of these unit can be connected in parallel
• 0 ms transfer time
• Power Factor 1
• Detachable LCD control module with multiple communications.
• *Please take note of connection: Connect RED cable to (+) on battery and the (+) on the unit, and BLACK cable to (-) on battery and the (-) on the unit. Place cable lug directly onto the battery terminal first, follow up with the washer and then the lock washer, and then the nut. Do not put a washer between the battery terminal and cable. Connect the positive cable first.

Mecer 5kVA/5kW KING with Parallel incl – SOL-I-AX-5KP specs

• Zero transfer time to protect mission-critical loads such as servers and ATM
• Detachable LCD control module with multiple communications
• Built-in bluetooth for mobile monitoring (android app is available)
• Supports USB on-the-go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Configurable AC/PV output usage timer and prioritization
• Optional parallel operation up to 9 units
