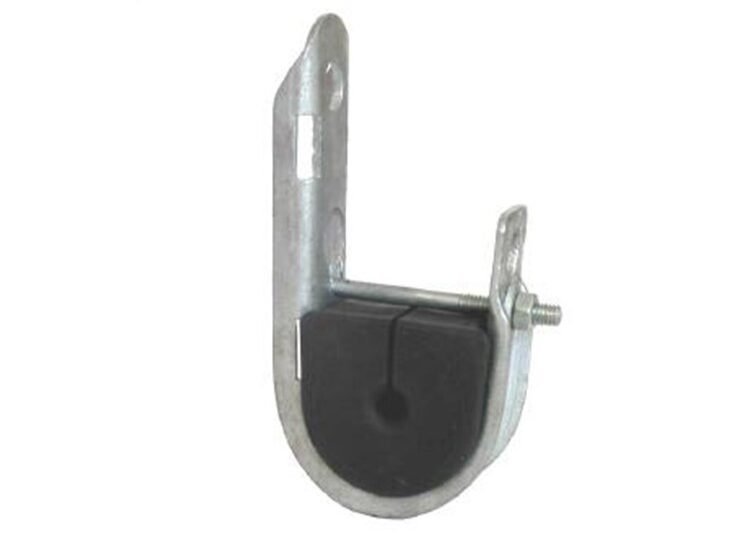

J-Hook Suspension Clamp for ADSS Cable 10-16 mm

J Hook Suspension Clamp 10~ 15mm is designed to suspend ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging.

A wide  range of gripping capacities and mechanical resistance archived by wide product range ,with different size of neoprene inserts. The metal hook of suspension clamps allows installation on the pole by using stainless steel band and pigtail hook or brackets.

Main Features

• Installation in just a few seconds with a 13 mm standard 6 point spanner
• The shape of the  J Hook allows a running out of the cable directly in the hook
• The suspension clamps can be directly secured to the poles using bolts or bandings.

They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations

Specification

1. Cable span: span up to 100meters
2. Breaking Load (KN): 12Kn
3. Suitable for cable:10~15mm ADSS cable
4. material: Aluminum +Plastic
5. insert:  Protected Neoprene
6. Screw : protected steel
7. packaging Requirements; carton $ 50pcs/carton
8. Processing Technology: Forming
