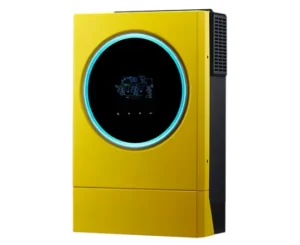

InfiniSolar V IV 5600W Hybrid PV Inverter 5.6KW INVERTER / CHARGER
KSh 83,000.00
InfiniSolar V IV 5600W Hybrid PV Inverter 5.6KW INVERTER / CHARGER specs
| MODEL | InfiniSolar V IV 3.6KW | InfiniSolar V IV 5.6KW | InfiniSolar V IV 6KW |
| PHASE | 1-phase in / 1-phase out | ||
| MAXIMUM PV INPUT POWER | 5000W | 6000W | 6500W |
| RATED OUTPUT POWER | 3600W | 5600W | 6000W |
| MAXIMUM CHARGING POWER | 5000W | 6000W | 6000W |
| GRID-TIE OPERATION | |||
| PV INPUT (DC) | |||
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC | 360 VDC / 450 VDC | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 110VDC / 120 VDC | 110VDC / 120 VDC | 120VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 430 VDC | 120 VDC ~ 430 VDC | 120 VDC ~ 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1 / 18 A | 1 / 27 A | 1/27A |
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240 VAC | ||
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) | ||
| Nominal Output Current | 15.6A | 24.3A | 26.1A |
| Power Factor | > 0.9 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 96% | 96% | 95% |
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120 – 140 VAC / 180 VAC | ||
| Acceptable Input Voltage Range | 90 – 280 VAC or 170 – 280 VAC | ||
| Maximum AC Input Current | 40 A | 40 A | 40 A |
