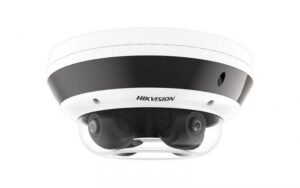

Hikvision DS-2CD6D54G1-IZS 20 Megapixel Outdoor Multi-Sensor PanoVu EXIR Flexible Network Camera, 2.8-12mm Lens

Hikvision DS-2CD6D54G1-IZS 20 Megapixel Outdoor Multi-Sensor PanoVu EXIR Flexible Network Camera, 2.8-12mm Lens descriptions

The DS-2CD6D54G1-IZS from Hikvision is a 20 Megapixel Outdoor Multi-Sensor PanoVu EXIR Flexible Network Camera, 2.8-12mm Lens. Hikvision’s DS-2CD6D54G1-IZS EXIR PanoVu Flexible Outdoor Network Camera features 1/2.7″ progressive scan CMOS sensors and four lenses.

Each lens supports a resolution of up to 2560 x 1920 at 24 fps. Compression up to H.265+ saves bandwidth and storage space. EXIR technology extends the IR range to 100 feet (30 meters)

• 1/2.7″ Progressive Scan CMOS
• 2560 x 1920 @ 24 fps
• Four Flexible Lenses
• FOV: Horizontal 100° to 49°, Vertical 72° to 36.4°, Diagonal 134.4° to 61.4°
• H.265+, H.265, H.264+, H.264
• 120 dB WDR
• 6 Behavior Analyses, 4 Exception Detections, and Face Detection
• 100 ft (30 m) IR Range
• IP67, IK10
• 4 x 2-Axis Individual Camera Gimbals

Hikvision DS-2CD6D54G1-IZS 20 Megapixel Outdoor Multi-Sensor PanoVu EXIR Flexible Network Camera, 2.8-12mm Lens specs

SKU	DS-2CD6D54G1-IZS
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flicker less, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer	Hikvision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	61~100 Feet
Resolution	20 Megapixel
Lens Type	Varifocal
Lens Size	2.8-12mm
Mount Type	Ceiling, Wall
Compression Method	H.264, M-JPEG, H.265, H.264+, H.265+
Durability	Vandal Resistant, Weather Resistant
Voltage	12vDC, 24vAC, PoE
Dimensions (W x H)	Ø9.8″ × 4.4″ (Ø250 mm × 113 mm)
Electronic Shutter	1 s to 1/100,000 s
Image Device	1/2.7″ progressive scan CMOS
IR Wavelength	850 nm
Minimum Scene Illumination	Color: 0.0125 lux @ (ƒ/1.9, AGC on), B/W: 0.0025 lux @ (ƒ/1.9, AGC on)
Operating Humidity	95% or less (non-condensing)
Operating Temperature	-22° to 140° F (-30° to 60° C)
Power Consumption	12 VDC: 22 W; 24 VAC: 22 W; PoE: 19 W
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour
Scanning System	Progressive
Weatherproof	IP67
Digital Noise Reduction	3D DNR
Angle of View	Horizontal field of view: 100° to 49°, Vertical field of view: 72° to 36.4°, Diagonal field of view: 134.4° to 61.4°
IR Distance	30m/100ft
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Flickerless	Yes
Motion Detection Tracking	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
