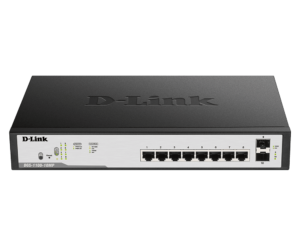

D-Link 8 Port PoE Gigabit Smart Managed Switch + 2 SFP ports – DGS-F1100-10PS
KSh 14,500.00
D-Link 8 Port PoE Gigabit Smart Managed Switch + 2 SFP ports – DGS-F1100-10PS
The D-Link DGS-F1100-10PS-E 8Port PoE Switch offers a flexible networking solution for small and medium-sized enterprises consequently the switch from D-Link offers a Complete web interface for comprehensive switch management.
Features:
Number of Ports: 8-port 10/100 / 1000BASE-T, 2 combo port 100/1000 Base-T / SFP
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Flow Control, IEEE 802.3az
Performance: in addition, the Switching Matrix is at 20 Gbit / s, Speed forwarding 64-byte packets: 14,88 Mpps, Size of MAC address table: 8 K, DRAM for CPU: 128 MB, packet buffer: 4.1 MB, Flash-Memory: 16 MB, Jumbo-frames: Up to 10 Kbytes
Indicators: Power (per device), Link / Activity / Speed (per port)
Power consumption: Standby: 3.4 W, Maximum power consumption: 7.9 W
The software features:
Level 2 functions: MAC-address table: 8K, 802.3x Flow Control,
HOL Blocking Prevention: Loopback Detection is: Port Mirroring
+ Support 4 groups
+ One-to-One
+ Many-to-One
Multicast Layer 2
• IGMP Snooping: IGMP v1 / v2 Snooping, v3 Awareness, Supports 256 groups, IGMP Snooping Fast Leave-based port
• Authentication IGMP; MLD Snooping, MLD Snooping v1, v2, Support groups 256 MLD Snooping (shared with IGMP Snooping), MLD Snooping Fast Leave-based site, Limited IP Multicast (Restriction of multicast on IP-addresses)
V-LAN
• 802..1Q. FOR THE Tagged VLAN.
• Video LAN Group: Support for 32 static VLAN groups.
• Management VLAN: VLAN-based port., ISM VLAN.
• Double VLAN (Q-in-Q), + Q-in-Q port-based.
Quality of Service (QoS)
• The Switch still supports Processing Queue: Strict Priority, Weighted Round Robin (WRR). In addition, Each port has 8 queues.
• Bandwidth Management: Based on the port (incoming/outgoing, with a minimum of 16 kbit / s).
• CoS based on: 802.1p, DSCP.
