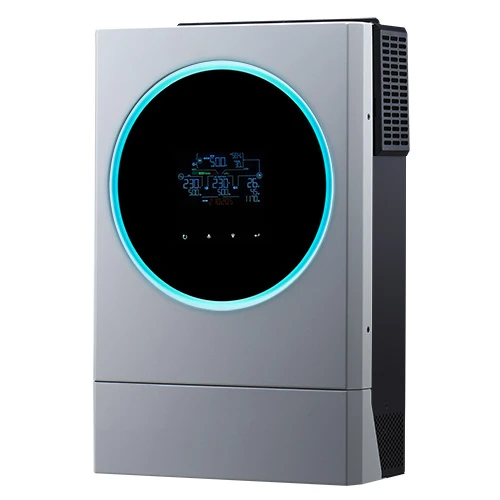

Axpert MKS 3600W IV Solar Inverter off-Grid wifi inverter
KSh 80,000.00
Axpert MKS 3600W IV Solar Inverter off-Grid wifi inverter
Product Parameters
|
Model
|
Axpert MKS IV 3600-48
|
|||
|
Rated Power
|
3600VA/3600W
|
|||
|
Parallel Capability
|
YES, 9 units
|
|||
|
INPUT
|
||||
|
Voltage
|
230 VAC
|
|||
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers)90-280 VAC (For Home Appliances)
|
|||
|
Frequency Range
|
55 Hz/60 Hz (Auto sensing)
|
|||
|
OUTPUT
|
||||
|
AC Voltage Regulation (Batt. Mode)
|
230VAC ± 5%
|
|||
|
Efficiency (Peak)
|
93%
|
|||
|
Transfer Time
|
10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
|
|||
|
Waveform
|
Pure sine wave
|
|||
|
BATTERY
|
||||
|
Battery Voltage
|
48 VDC
|
|||
|
Floating Charge Voltage
|
54 VDC
|
|||
|
Overcharge Protection
|
66 VDC
|
|||
|
SOLAR CHARGER & AC CHARGER
|
||||
|
Solar Charger Type
|
MPPT
|
|||
|
Maximum PV Array Power
|
5000W
|
|||
|
MPPT Range @ Operating Voltage
|
120 ~ 430 VDC
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|||
|
Maximum Solar Charge Current
|
100A
|
|||
|
Maximum AC Charge Current
|
100A
|
|||
|
PHYSICAL Dimension
|
||||
|
Dimension, D x W x H (mm)
|
140 x 295 x 468
|
|||
|
Net Weight (kgs)
|
11
|
|||
|
Communication Interface
|
USB/RS232/RS485/Wifi/Dry-contact
|
|||
|
OPERATING ENVIRONMENT
|
||||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|||
|
Operating Temperature
|
-10°C to 50°C
|
|||
|
Storage Temperature
|
-15°C to 60°C
|
|||
|
STANDARD
|
||||
|
Compliance Safety
|
CE
|
|||
