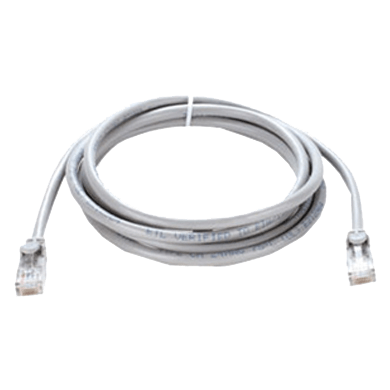

D-link Cat6 UTP 3M Patch Cord descriptions

3M Category 6 copper interconnect products work together to provide an easy-to-use solution for deploying high-speed connections throughout a building. The 3M™ RJ45 Jack is a key component in this system, fully compliant with Category 6 TIA, ISO/IEC and EN standards for hardware performance, confirmed by independent laboratory certifications (Delta, GHMT).

The jack’s unique three cable entry points help make installation simple. The traditional one-click design enables an easy, tool-less termination on Cat. 6 U/UTP cables, meeting industry performance standards.

D-link Cat6 UTP 3M Patch Cord specs

4 Pairs Unshielded Twisted Pair (UTP) Cable

Conductor Metal: Bare Copper

Conductor: 24 AWG

Jacket Material: PVC UL94V-0

Color Code: Grey

Insulation Material: HD-PE

Heat-resistant: 75º C minimum

RJ-45 8P for Transparence color

Gold plated: 30U”

Contact blade: Phosphor Bronze

Temperature range: -20 ~ 80oC

Dielectric withstanding voltage: 500V AC

Insulation resistance: 35M Ohm (max.)

Durability: 750 matching cycles

Cable-to-plug tensile strength: 20lbs (89N) (min.)
