Cat 6A Solid F/UTP LDPE Cable – 305m drum Outdoor Shielded Cable descriptions
The Cat 6A F/UTP ‐ foil screened ‐ cables are manufactured and tested to the ANSI/TIA-568.2-D, ISO/IEC11801-1, and EN 50173-1 Category 6A specifications. Each cable consists of 8 color-coded 23AWG polyethylene insulated, solid bare copper, conductors. These are twisted together to form 4 pairs with varying lay lengths.

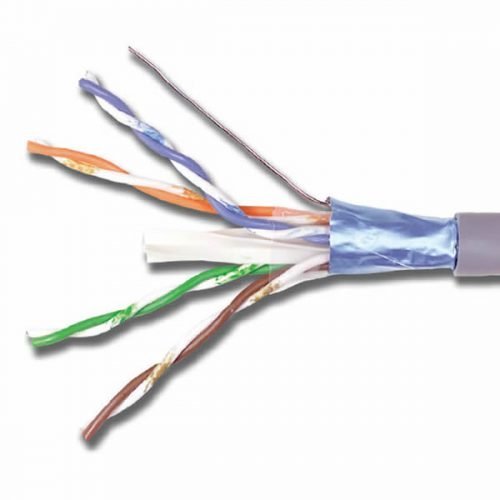

These pairs are then formed around a central ‘X’ shaped polyethylene filler. This filler assists in maintaining and enhancing the cable’s performance. Clear Mylar tape is then wrapped around this unit and a foil tape screen with 24AWG drain wire applied. The foil screen provides protection from Electromagnetic Interference (EMI) which can occur when data is transmitted at high frequencies.
- Overall Foil Tape Screen
- LDPE Outer Sheath
- Outdoor type
- Supplied various reel sizes
- UV and Moisture Resistant Polyethelene Outer Sheath
- Central ‘X’ filler
- 23AWG {0.575mm (0.023 in.)} conductor
- 25 Year System Warranty
- Cat 6A Solid F/UTP LDPE Cable – 305m drum Outdoor Shielded Cable specs
Conductor: | 23AWG |
Length: | 305M |
Material: | Solid bare Copper |
Sheath: | LDPE |
Performance: | 500Mhz |
Standards: | ANSI/TIA-568.2-D, ISO/IEC 11801-1 and EN 50173-1 |
