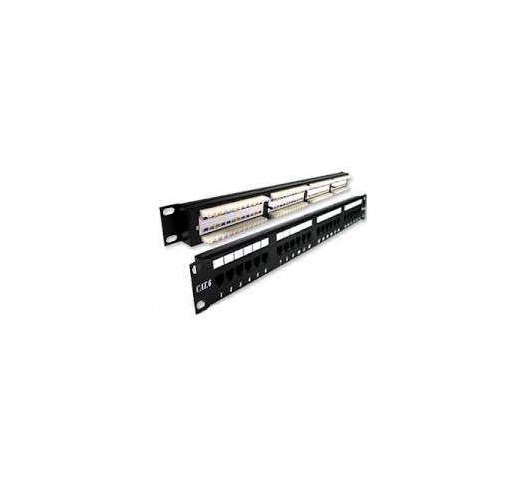

Arnet Cat 6A 24 port patch panel descriptions
24 Port 1U Cat6 RJ45 UTP Patch Panels are designed for structured cabling solutions and network management. Cat6 RJ45 UTP Right Angle Patch Panel represents a cost-effective category 6 solutions with integral rear cable management.
The patch panels have been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance and these high-density patch panel combines the proven quality and performance of the existing range with enhanced aesthetics and labeling system.
Cat6 RJ45 UTP Patch Panel is designed to make installations as easy and fast as possible, the termination blocks are positioned at a right angle to the panel front. Built-in rear cable management. Cage nuts and 1-96 self-adhesive label kit included Supplied with cable ties and instruction sheet Uses Excel Punchdown Tool BT Ref 2A.
Arnet Cat 6A 24 port patch panel specs
- Width 19 (483mm)
- Depth 34mm
- Height 1u (44mm)
- Fixing Centres 467mm
- Material Mild Steel Sheet CR4 to BSEN10130-1999 DC01 Plastic Inserts ABS Thermoplastic resin with grade UL94 V0 at 1.5mm flame retardancy
- Finish Black powder coat to BS6496
- Socket Labels 9 x 89mm (6-way blocks)
- IDC Colour Code IDC color code to T568B
- Cable Guide Two cable tie positions per 6 way block. Optional Cable Management Bar available
- Sockets High performance unshielded vertical jacks
- IDC Blocks Industry-standard IDC blocks
- PCB Groups of 6 identical circuits on 1.6mm double-sided PTH board
- Conforms to TIA-568-C.2 Category 6 specification
