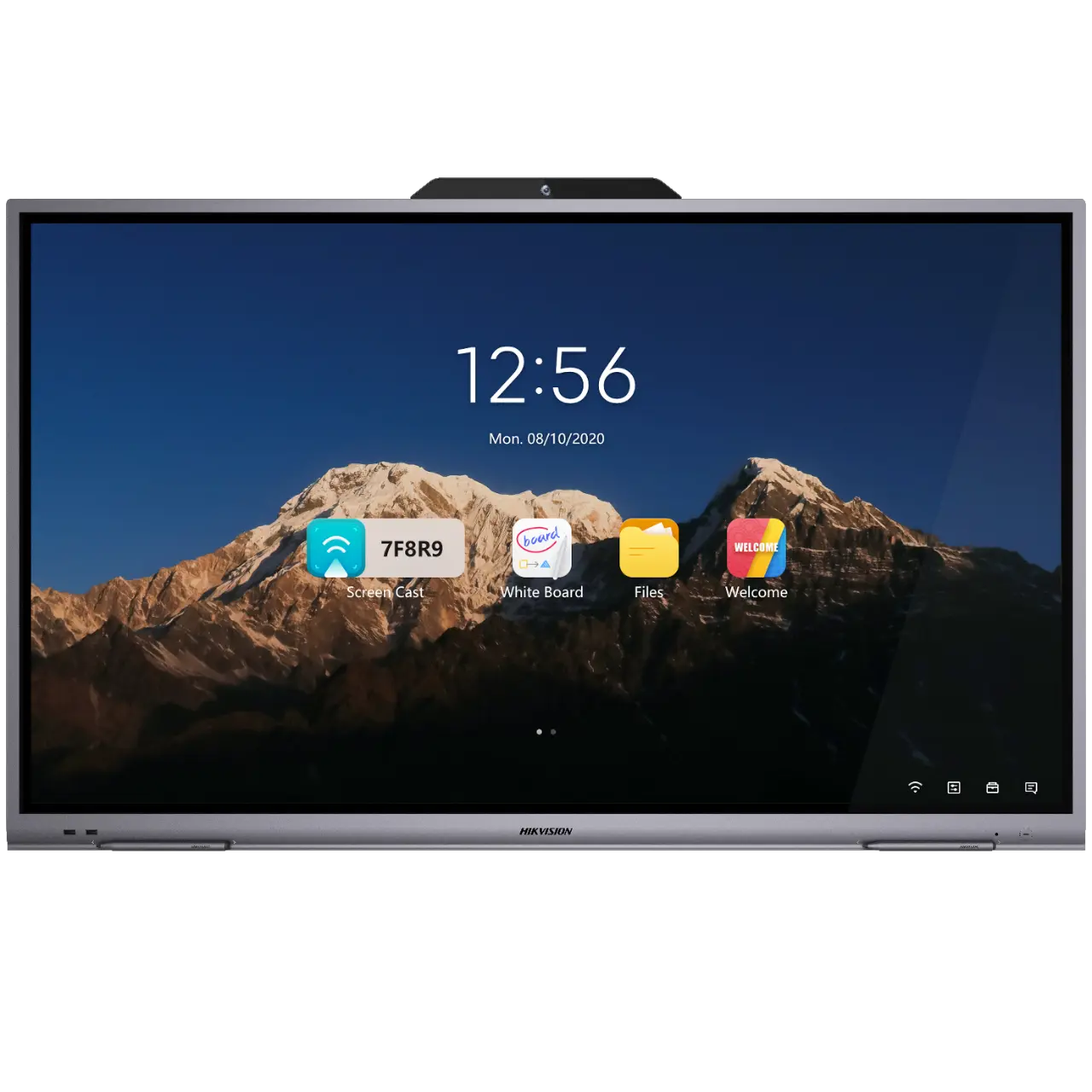

86-inch 4K Interactive Display W/ Camera and Microphone array
KSh 900,000.00
- 4K Display Presenting More Details: 4K resolution improves the image details with the features of being anti-glared, fingerprint-resistant, and strong light-blocked.
- Instant and Ultra-Fine Writing: Provides smooth writing with the touch precision of 1 mm, and smart stroke optimization makes every stroke more real.
- One-touch Sharing for Meeting: Annotation sharing by QR code or e-mail ensures more concentrations and higher efficiency.
- Free Annotating Without Boundaries: Built-in application enables free annotations and instant saving on any interfaces. The whiteboard system can register up to 20 simultaneous touch points, showing different opinions at the same time.
- Wireless Screen Mirroring: Wireless screen mirroring through laptop, desktop PC, mobile phone, and tablet with no need to connect cables. Convenient solution comparison thanks to screen split by half and by quarter.
- Corporative Working Without Distance Limit: Video conferencing available through relative software and hardware, making remote cooperation achievable. Multi-screen interaction in large-scale scenarios with synchronized displaying of writing.
- Built-in 8 MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.
86-inch 4K Interactive Display W/ Camera and Microphone array specs
- Product Model
- Product ModelDS-D5B86RB/B
- Display
- Screen Size86 inch LED Backlight
- Back light DLED
- Pixel Pitch0.164 (H) × 0.493 (V) mm
- Resolution3840 × 2160@60 Hz
- Brightness350 cd/m²
- Color Depth10 bit
- Contrast Ratio1200 : 1 (Typ.)
- Response Time6 ms
- Color Gamut90% NTSC (CIE1931) (Typ.)
- Refresh Rate60 Hz
- Viewing Angle178° (H) / 178° (V)
- Built-In System
- Operation System Android 8.0
- Processor4-core A73 × 2 + A53 × 2, 1.5 GHz
- Memory3 GB
- Built-In Storage32 GB
- NIC Built-in 100 Mbps NIC, supporting routing
- Touch
- Type Infrared touch screen
- Glass Smooth tempered glass being anti-glare and explosion-proof
- Touch Point20 point multi-touch
- Touch Response Time＜ 10 ms
- Touch Precision± 1 mm (≥ 90% touching area)
- Optical Bonding Support
- Internal Function
- Loud speaker Built-in 2 × 16 W loudspeaker
- Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.
- Interface
- Video & Audio Input HDMI IN × 2, MAX 4K @ 60 Hz, LINE IN × 1
- Video & Audio Output HDMI OUT × 1, MAX 4K @ 60 Hz, LINE OUT × 1
- Control InterfaceRS-232 × 1
- Network InterfaceRJ45 (100 Mbps port) × 2
- Data Transmission Interface USB on front panel × 2, USB on rear panel × 2, touch USB × 1
- Power
- Power Consumption≤ 420 W (full load)
- Standby Consumption0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH
- General
- Power100 to 240 VAC, 50/60 Hz
- Product Dimensions1963 × 1159 × 87.5 mm (77.3” × 45.6” × 3.4”)
- Package Dimensions (W × H × D)2187 × 1366 × 274 mm (86.1” × 53.8” × 10.8”)
- Net Weight65.62 kg (144.67 lb.)
- Gross Weight86.74 kg (191.23 lb.)
- Camera
- Pixel8 MP
- Camera Function Smart switch between Android system and OPS
- Field Angle100° (diagonal), 90° (horizontal), 66° (vertical)
- Distortion≤1%
- Camera Resolution Ratio Up to 4K
- Microphone
- Specification Omni-directional 6-array layout
- Mic Function Echo reduction and smart noise-cancellation
- Voice Distance8 m
- Sampling Rate32 K
- Mic Sampling Rate16 bit
