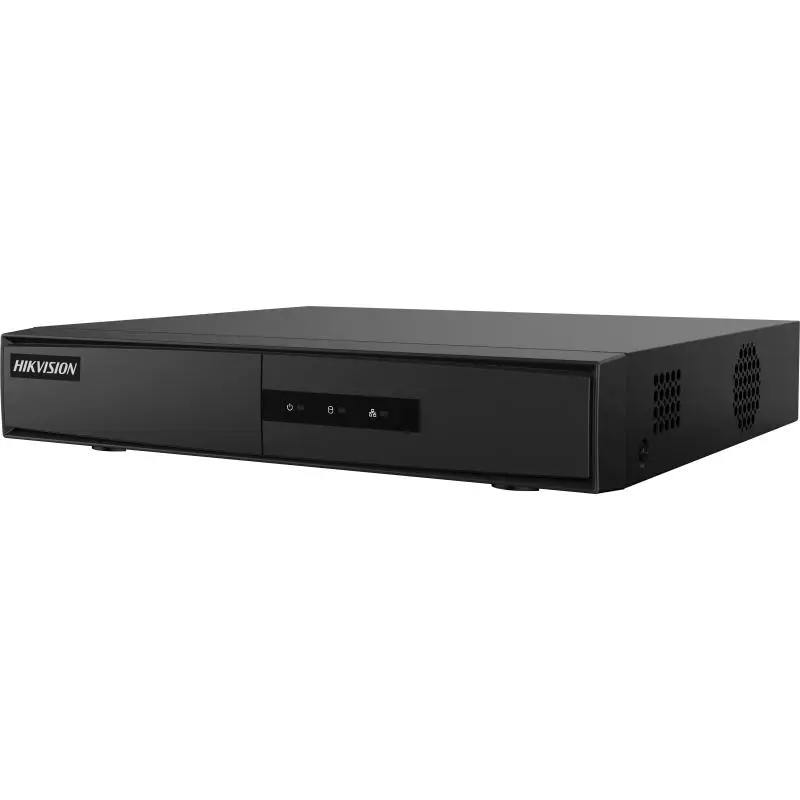

8-ch Mini 1U 8 PoE NVR DS-7108NI-Q1/8P/M
- H.265+/H.265/H.264+/H.264 video compression
- Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 8-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
8-ch Mini 1U 8 PoE NVR DS-7108NI-Q1/8P/M specs
- Video And Audio
- IP Video Input
8-ch
Up to 6 MP resolution
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode HDMI/VGA simultaneous output
- Decoding
- Decoding FormatH.265+/H.265/ H.264+/H.264
- Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream Type Video, Video & Audio
- Network
- Remote Connection16
- Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP ,UPnP™
- Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
- PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 75 W
- Standard IEEE 802.3 af/at
- Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 6TB capacity for each disk
- Alarm In/Out N/A
- USB Interface Rear panel: 2 × USB 2.0
- General
- Power Supply48 VDC, 1.8 A
- Consumption≤ 10 W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10% to 90%
- Dimension (W × D × H)265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″)
- Weight≤ 1 kg (2.2 lb)
- Certification
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
