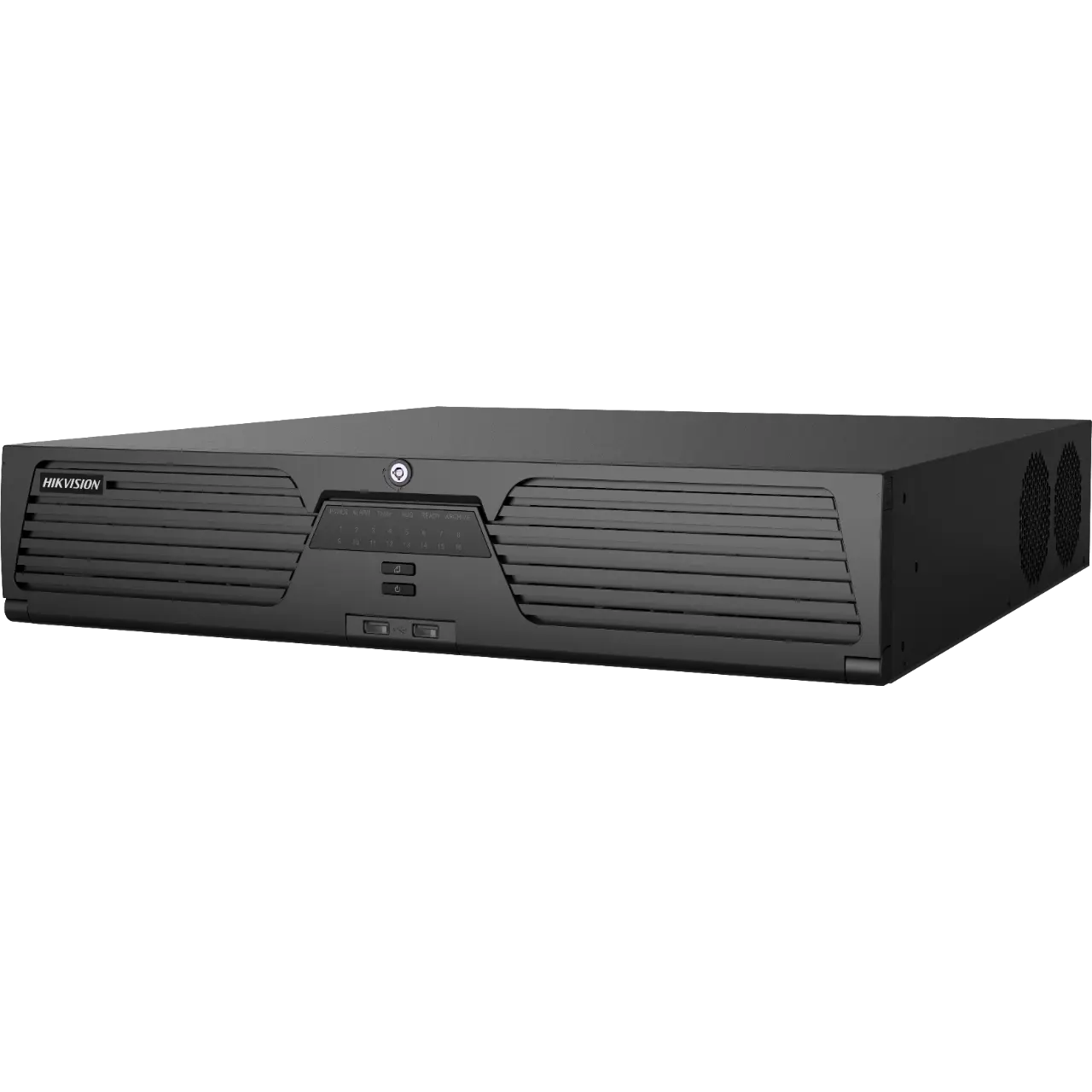

64-ch 2U 4K AcuSense NVR DS-9664NXI-I8/S specs

• Facial Recognition
• Facial Detection And Analytics Face picture comparison, human face capture, face picture search
• Face Picture Library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 15KB, total capacity ≤ 150 MB)
• Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
• Face Picture Comparison4-ch face picture comparison alarm

• Motion Detection 2.0
• Human/Vehicle Analysis32-ch

• Perimeter Protection
• Human/Vehicle Analysis

  Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition;

  Up to 12 rules in total

• Recording
• Dual-Stream Support
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2/AAC

• Video And Audio
• IP Video Input

  64-ch

  Up to 12 MP resolution

  *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

• HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth256 Mbps
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
• Decoding Capability16-ch@1080p (30 fps)
• Synchronous Playback64-ch
• Stream Type Video, Video & Audio

• Network
• Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

• Auxiliary Interface
• SATA8 SATA interfaces
• ESATA1 e SATA interface
• Capacity Up to 10 TB capacity for each disk
• Serial InterfaceRS-485 (full-duplex), RS-232, Keyboard
• USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/8

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 30 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Chassis2U chassis
• Dimension (W × D × H)442 × 459 × 92 mm (17.4″× 18″ × 3.6″)
• Weight≤ 8.7 kg (19.2 lb.)

• Certification
• FCC Part 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
• Obtained Certification  CE, FCC, IC
