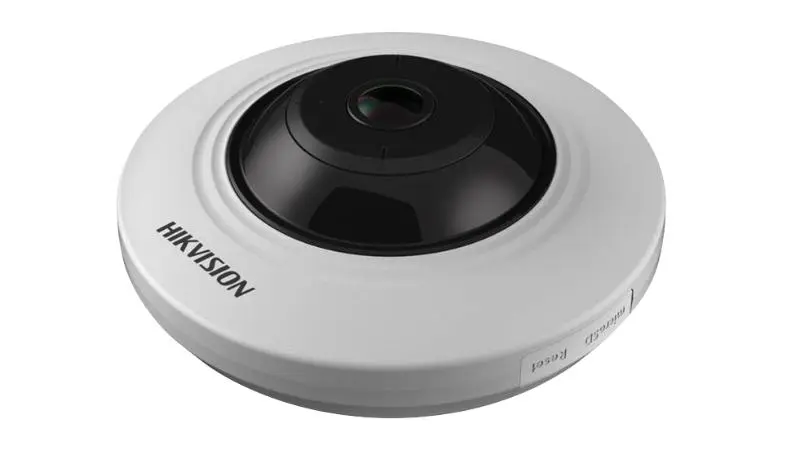

5 MP Fisheye Fixed Dome Network Camera DS-2CD2955FWD-I specs

• Camera
• Image Sensor1/2.5″ Progressive Scan CMOS
• Max. Resolution2560 × 1920
• Min. Illumination Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter with auto switch

• Lens
• Focal Length & FOV1.05 mm, horizontal field of view: 180°, vertical field of view: 180°
• ApertureF2.2
• Lens MountM12

• Illuminator
• Supplement Light Type IR
• Supplement Light Range Up to 8 m

• Video
• Main Stream50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960),60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960),
• Sub-Stream50Hz: 25fps (352× 288, 704 × 576),60Hz: 30fps (352 × 240, 704 × 576),
• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Main Profile/High Profile
• H.265 Type Main Profile
• Region Of Interest (ROI)Support 1 fixed region for main stream and sub-stream

• Fisheye Display
• Mount Type Support table, wall, and ceiling
• Display Mode

  Support 14 display modes in total (including display modes of different mount types):

  Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

• Audio
• Audio Sampling Rate-S: Support
• Environment Noise Filtering-S: 8kHz/16kHz/32kHz/44.1kHZ/48kHz
• Audio Compression-S: G.711/G.722.1/G.726/MP2L2/PCM, 8kHz/16kHz/32kHz/44.1kHZ/48kHz
• Audio Bit Rate-S: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

• Network
• Network Storage NAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, Web Socket, Web Sockets
• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

• Image
• Wide Dynamic Range (WDR)120 dB
• Day/Night Switch Auto/Schedule/Triggered by Alarm In (-S model supports)
• Image Enhancement WDR/3D DNR/Backlight Compensation/Defog/Distortion Correction
• Image Settings Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser

• Interface
• Audio-S: 1 audio input (line in), 1 audio output interface
• Alarm-S: 1 alarm input, 1 alarm output (12 VDC, max. 30 mA)
• On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 G
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Event
• Basic Event Motion detection, dynamic analysis, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
• Linkage Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
