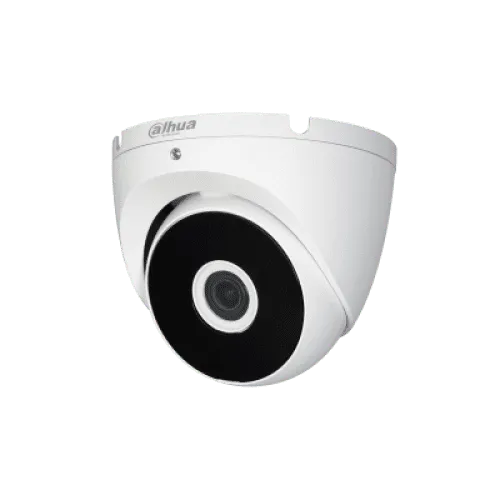

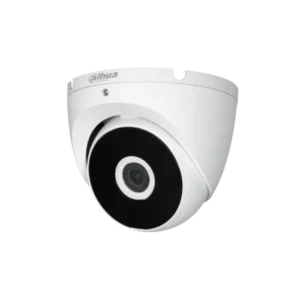

4MP IR Eyeball Camera DH-HAC-T2A41 HDCVI specs

Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 2560(H)×1440(V), 4MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm,6mm Optional)
Max Aperture F2.0
Angle of View H: 76.4° (97°,48.6°)
V:41.6° (52°,27.9°)
Focus Control N/A
Close Focus Distance 1400mm (800mm,2500mm)
55.12” (31.50″,98.43”)
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition Distance
Detect 25px/m
(8px/ft)
2.8mm:56m(184ft)
3.6mm: 80m(262ft)
6mm: 120m(394ft)
Observe 63px/m
(19px/ft)
2.8mm:22m(73ft)
3.6mm: 32m(105ft)
6mm: 48m(157ft)
Recognize 125px/m
(38px/ft)
2.8mm:11m(37ft)
3.6mm: 16m(52ft)
6mm: 24m(79ft)
Identify 250ppm
(76px/ft)
2.8mm: 6m(18ft)
3.6mm: 8m(26ft)
6mm: 12m(39ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution 4MP (2560×1440)
Frame Rate 25/30fps@4MP,25/30fps@1080P
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max. 3.9W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance IP67
Construction
Casing Aluminium
Dimensions 94mm×94mm×78mm(3.7″×3.7″×3.07″)
Net Weight 0.27kg (0.60lb)
Gross Weight 0.34kg (0.75lb)
