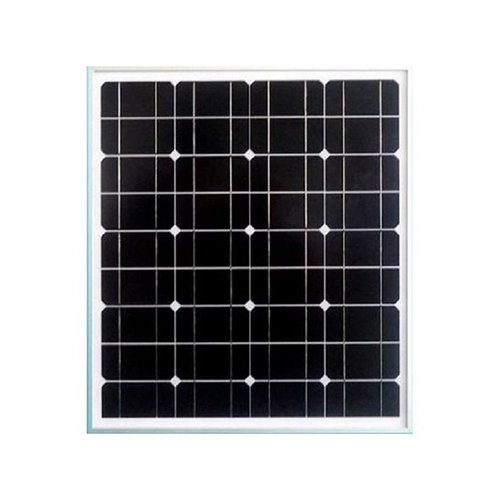

40 watts solarmax solar panel

40 Watts mono crystalline is a robust solar module with 44 solar cells. These modules can be used for off-grid solar applications.

Reliable and advanced encapsulation material with multi-layered sheet lamination to enhance cell performance and provide a long service life. 100% EL testing on all modules; no hot-spot heating guaranteed.

TPT back sheet ensures smooth performance over a long period of time..

Corrosion-resistant aluminum frame for extended outdoor use allow the panels to last for decades. Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance.

IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Versatile thus can be used for many different applications.

40 watts solarmax solar panel specs

• Max Power at STC (Pmax) = 40 watt
• Open Circuit Voltage (Voc) = 22.7 V
• Short Circuit Current (Isc) = 2.84 A
• Optimum Operating Voltage (Vmp) = 18.5 V
• Optimum Operating Current (Imp) = 2.70 A
• Max System Voltage = 600VDC (UL)
• Max Series Fuse Rating = 15 Amp
