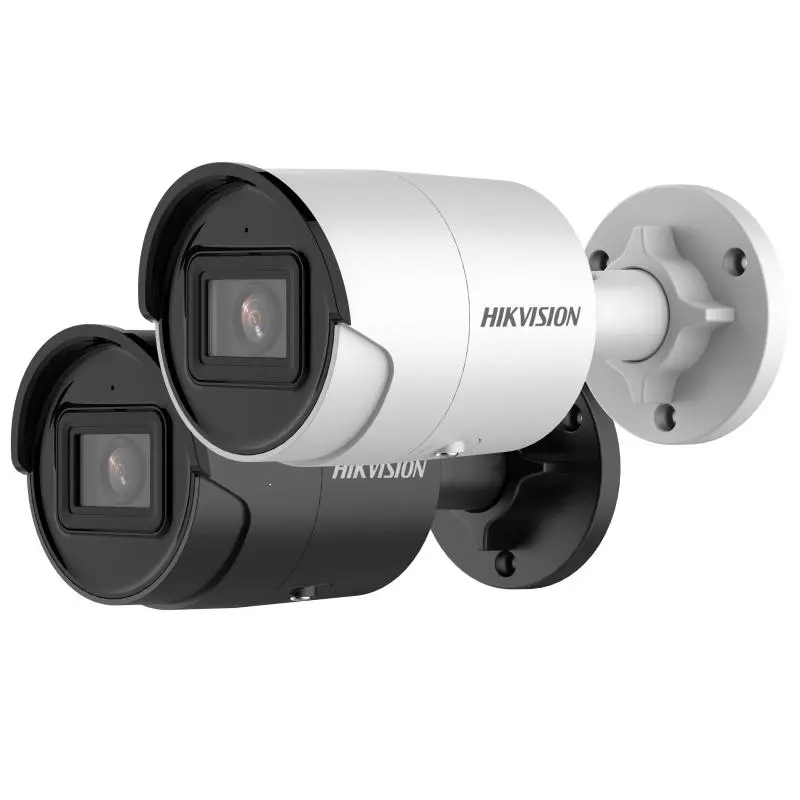

4 MP AcuSense Fixed Mini Bullet Network Camera DS-2CD2046G2-I(U) specs

• Camera
• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

  4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°

  6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°

• Lens MountM12
• Iris Type Fixed
• ApertureF1.4

• DORI
• DORI

  2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

  4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m

  6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

• Illuminator
• Supplement Light Type IR
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Audio Type-U: mono sound
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes
