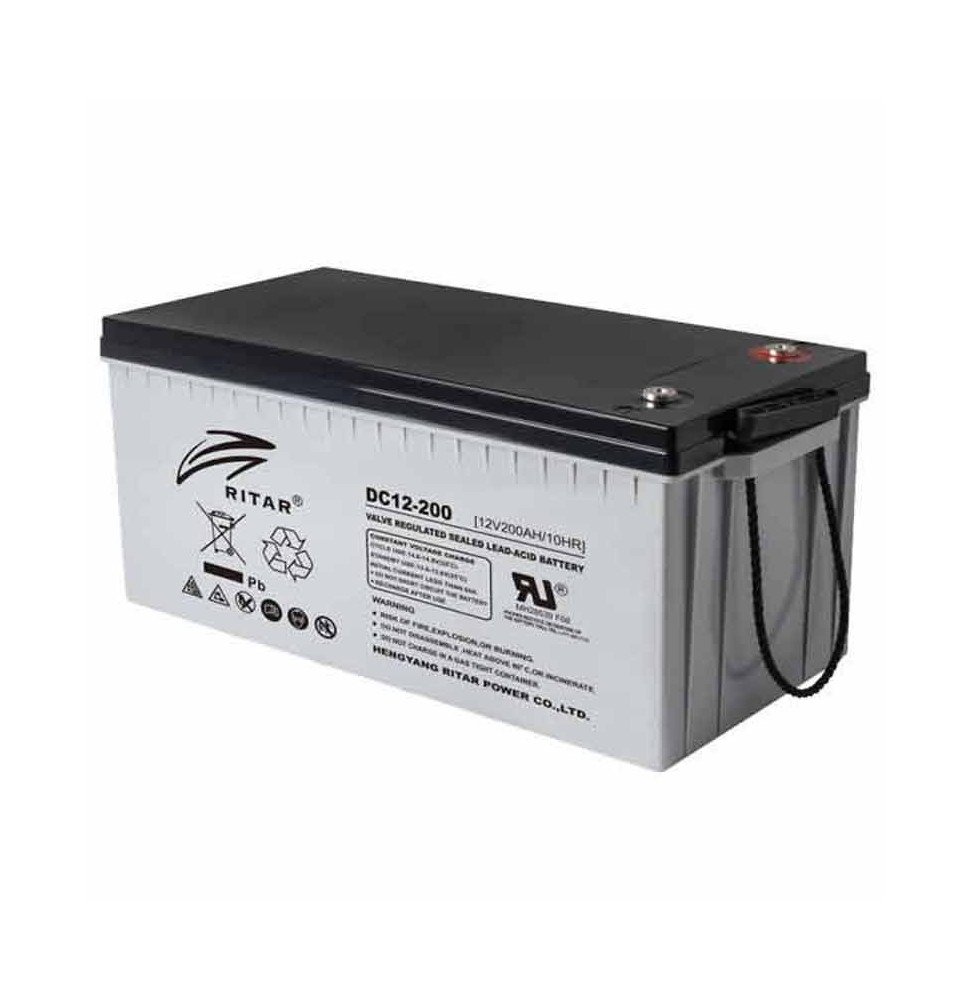

200AH 12V Ritar Solar Battery descriptions

200AH 12V Ritar Solar Battery offers high storage capacity. This maintenance-free Absorbed Glass Mat (AGM) battery will meet your toughest requirement in deep cycle applications. With its long design life, low self-discharge rate, good discharge performance, and wide operation temperature range,

Ritar 200Ah 12V AGM battery is a leading brand for those wanting exceptional battery performance.

200Ah 12V RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25°C. Self-discharge ratio less than 3% per month at 25°C”. Of course, battery left for that long must be charged well before using.

 Ritar 200Ah 12V AGM battery specifications

• Cells Per Unit: 6
• Voltage Per Unit: 12
• Capacity: 200Ah@10hr-rate to 1.80V per cell @25oC
• Weight: Approx. 60.0 Kg (Tolerance±1.5%)
• Normal Temperature Range: Discharge: -20 ~60; Charge: 0oC~50°C; Storage: -20°C~60°C
• Operating Temperature Range: 25°C±5oC
• Max. Discharge Current: 2000A (5 sec)
• Internal Resistance: Approx. 4 mΩ
• Float charging Voltage: 13.6 to 13.8 VDC/unit Average at 25°C
• Recommended Maximum Charging Current Limit: 60A
• Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25°C. Self-discharge ratio less than 3% per month at 25°C. Please charge batteries before using.
• Container Material: A.B.S. UL94-HB, UL94-V0 Optional
• Dimensions (mm): 522(L)×240(W)×223(H)
