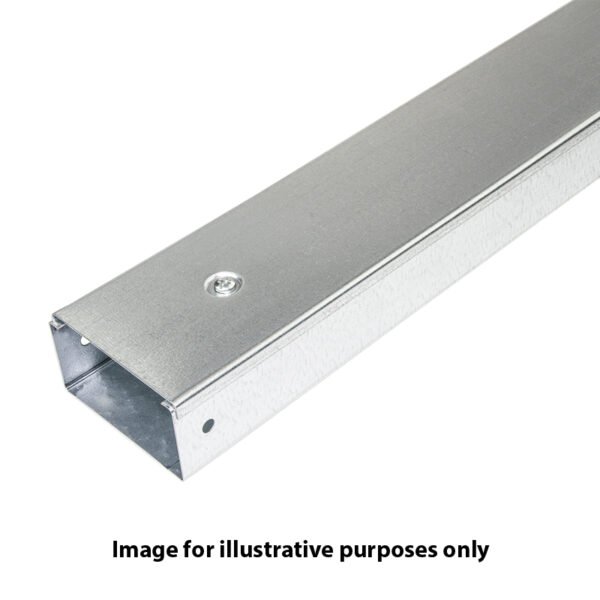

2 Compartment150mm x50mm Cable Trunking

2 Compartment150mm x50mm Cable Trunking

Key Specs of 2 compartment 150mmx50mm Cable Trunking

.  Single Compartment.
.   Manufactured from continuously hot dipped zinc coated low Carbon Steel Strip to BSEN10346: 2015.
.   All lid fixings and couplers are included as standard.
.   Lid is secured using ‘Bridge Pieces’.
.  Four lid fixings per 3m length. Bridge pieces also act as cable retainers.
.   Multi Compartment trunking and accessories available.
.  Special sizes and bespoke designs are available upon request.
.   Tamperproof lid fixing option available on request.
.  Can be powder coated to customer specific RAL colour.
.   Manufactured to allow retrofit installation of our IP4X system. (Sold Separately).

.  Width
150mm

.  Height
50mm

. Length
3000mm

.  Weight (Kg)
9.33

. Number of Compartments
2

.  Material
Hot Dipped Zinc Coated Low carbon steel strip

.  Colour/Finish
Pre Galvanised Steel (Zinc Coated)

.  Product Type
Trunking

.  Standards
BS EN 50085-2-1 2006

.  Resistance Class
IP20
