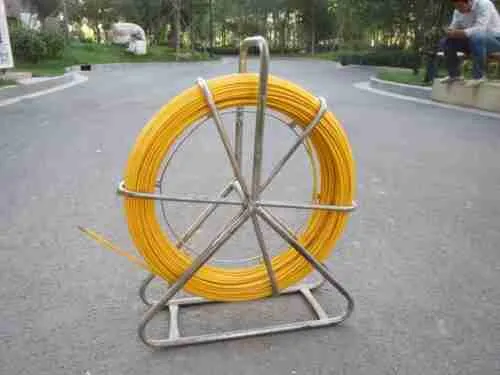

12mm Cable Duct Rodder with wheel (100M)
KSh 52,000.00
12mm Cable Duct Rodder with wheel (100M) specs
|
Rod Diameter (mm)
|
Φ4.5,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
|
|
|
Rod Length (m)
|
30~500
|
|
|
Frame Spec.(cm)
|
50*40*15, 67*55*16, 76*66*16, 95*90*48, 105*100*48, 130*120*48, 150*140*48
|
|
|
Color
|
Blue, yellow, red, white etc
|
|
|
Material
|
Rod Inner
|
Extruded by fiber glass and high strength resin at high temperature
|
|
Rod Outer
|
High Density polyethylene coating
|
|
|
Frame
|
Steel / Galvanized
|
|
|
Wheel
|
Rubber
|
|
|
Drawing head
|
Copper
|
|
|
Physical Characters
|
Density
|
55g/m
|
|
Working temperature
|
-40°C to +80°C
|
|
|
Breaking tension
|
100kg
|
|
|
Bending Radius
|
295mm
|
|
|
Technology
|
Pultrusion
|
|
|
Packaging
|
Inside
|
Plastic woven strip wind around the frame
|
|
Outside
|
Carton
|
