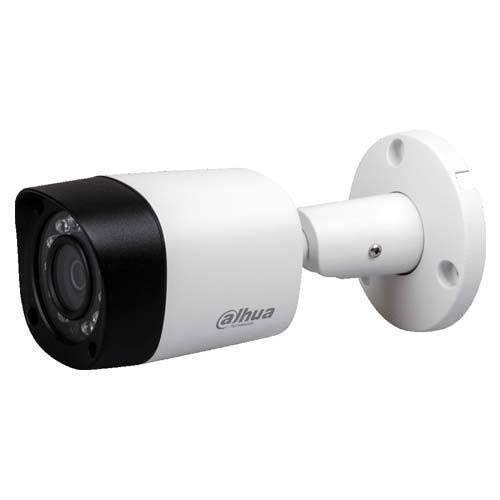

5MP AHD Bullet Camera Dahua DH HAC-B1A51P-A HDCVI Fixed IR
KSh 2,800.00
* The parameters and datasheets below can only be applied to A51-S2 series
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
> Max. 25 fps@5MP (16:9 video output)
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm optional)
> Max. IR length 20 m, Smart IR
> Built-in mic
> IP67, DC12V
5MP AHD Bullet Camera Dahua DH HAC-B1A51P-A HDCVI Fixed IR specs
-
Image Sensor
5MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Pixel
5MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25–1/100000 s
NTSC: 1/30–1/100000 s
Min. Illumination
0.02 Lux/F2.0, 30IRE, 0 Lux IR on
S/N Ratio
More than 65 dB
Illumination Distance
20 m (66 feet)
Illuminator On/Off Control
Auto;manual
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
M12
Focal Length
3.6 mm (2.8 mm Optional)
Max Aperture
F2.0
Angle of View
2.8 mm: 125° × 106° × 56°
(diagonal × horizontal × vertical)
3.6 mm: 104° × 88° × 46°
(diagonal × horizontal × vertical)
Focus Control
N/A
Close Focus Distance
2.8 mm: 0.8 m (2.6 ft)
3.6 mm: 1.2 m (3.9 ft)
DORI distance
Lens
Detect
Observe
Recognize
Identify
2.8mm
56.0 m
(183.7 ft)
22.4 m
(73.5 ft)
11.2 m
(36.7 ft)
5.6 m
(18.4 ft)
3.6mm
80 m
(262.5 ft)
32 m
(105.0 ft)
16 m
(52.5 ft)
8 m
(26.2 ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° – 360°
Tilt: 0° – 90°
Rotation: 0° – 360°
Video
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; 5M@25 fps
NTSC: 5M@25 fps;4M@30 fps; 1080p@30 fps; 5M@25 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps;
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps;
CVBS:
960H;
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night
Auto (ICR) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / DWDR
WDR
DWDR
Gain Control
AGC
Noise Reduction
2D
White Balance
Auto;manual
Smart IR
Yes
Mirror
Off/On
Privacy Masking
Off / On (8 area, rectangle)
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4,EN60950-1,
EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
Audio Interface
One channel built-in mic
Electrical
Power Supply
12V DC ±30%
Power Consumption
Max. 3.7W (12V DC, IR on)
Environmental
Operating Conditions
–40°C to +60°C (–40°F to +140°F) /Less than 95% RH
* Start up should be done at above –40°C (–40°F)
Storage Conditions
–40°C to +60°C (–40°F to +140°F) /Less than 95% RH
Ingress Protection & Vandal Resistance
IP67
Construction
Casing
Plastic
Dimensions
69.8 mm × 69.8 mm × 149.3 mm
(2.75″ × 2.75″ × 5.88″)
Net Weight
0.15 kg (0.33 lb)
Gross Weight
0.25 kg (0.55 lb)
